HULL DESIGN
DESIGN ALTERNATIVES
Canoe Design 1 is a very long design with a narrow base.
Canoe Design 2 is a narrow design with a wide base.
Canoe Design 3 is a long design with a narrow-wide base.

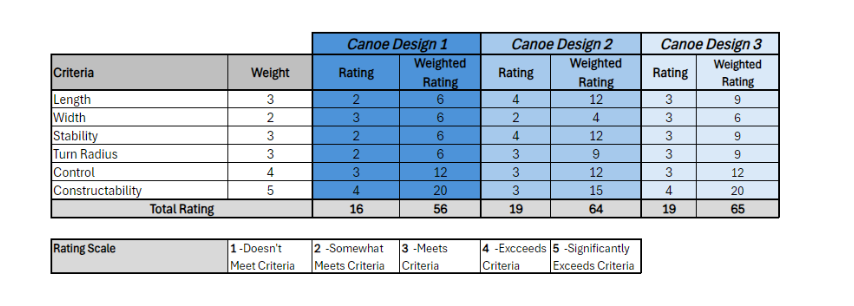

DECISION MATRIX

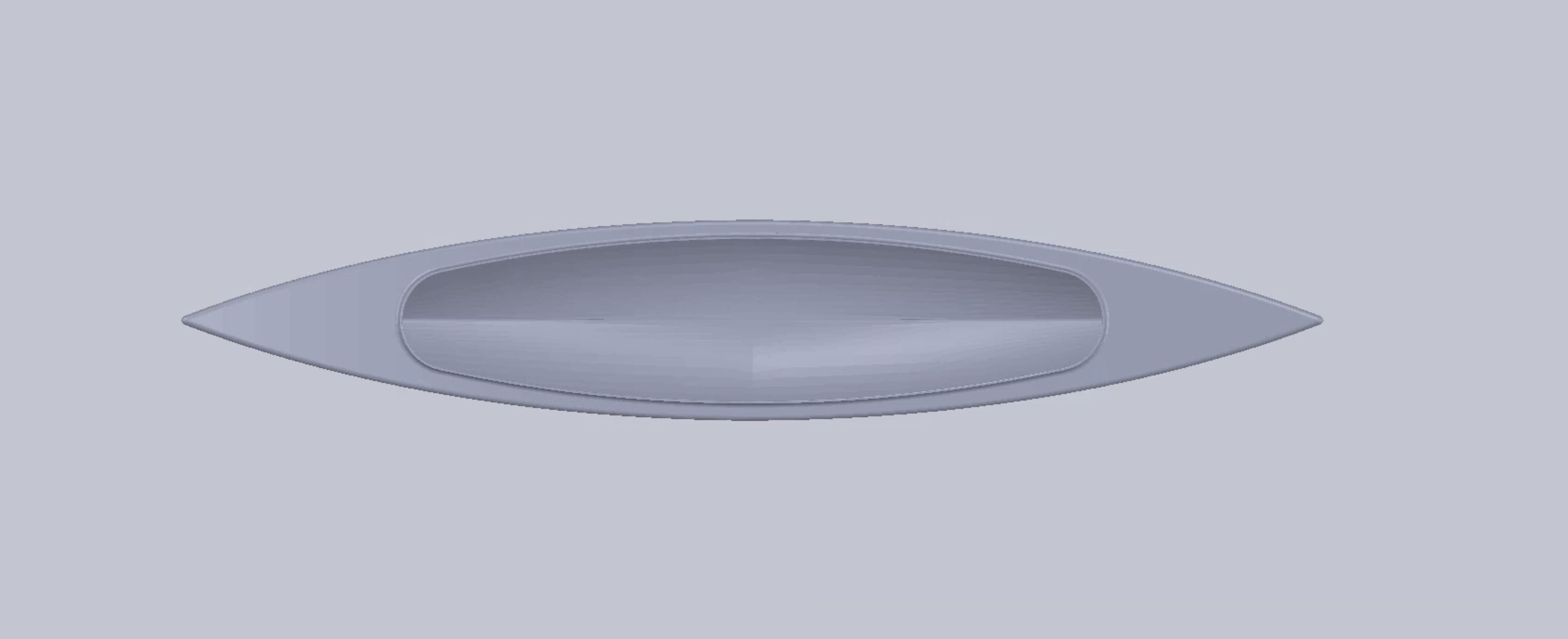

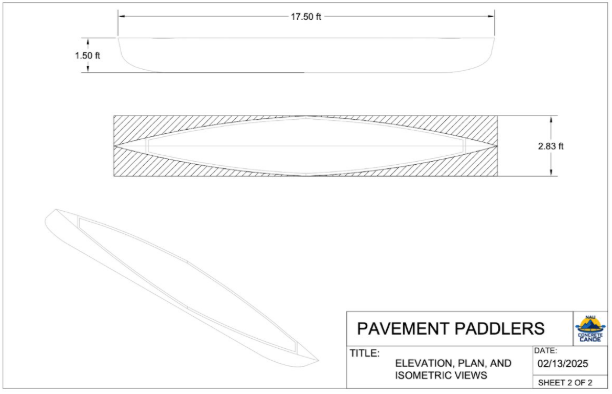

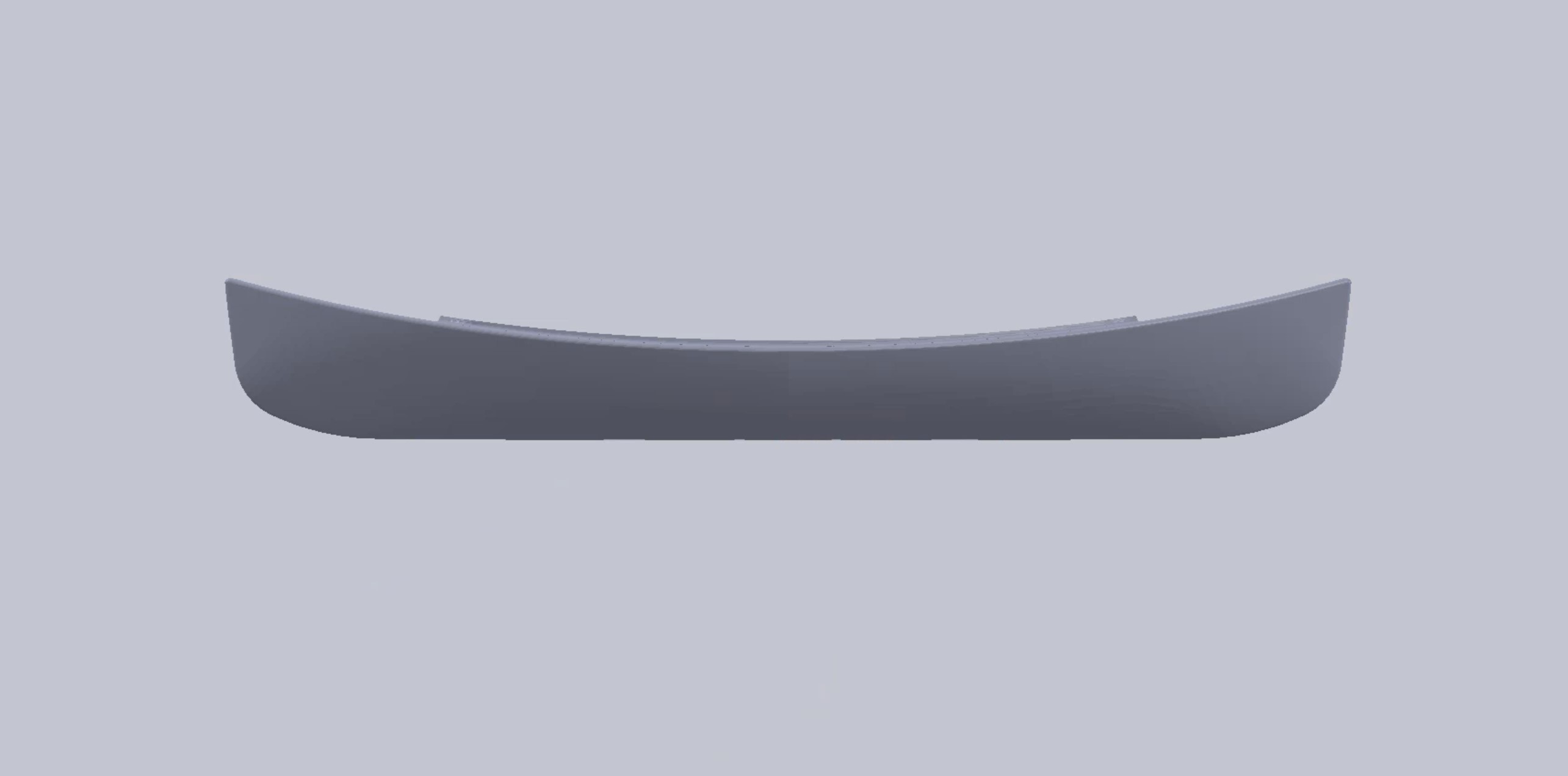

CHOSEN DESIGN: CANOE DESIGN 3
Back to Top
STRUCTURAL ANALYSIS

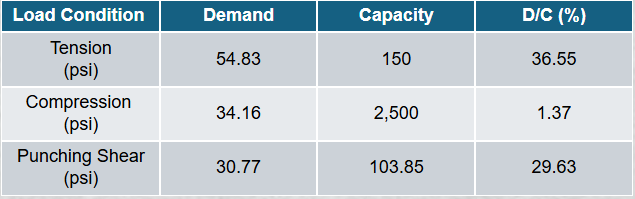

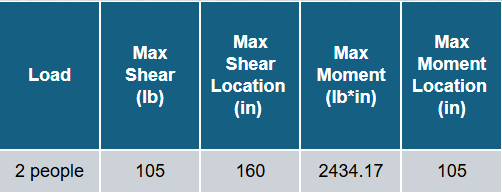

Table 1: Loading Calculation Results
Table 2: Live Load Calculation Results

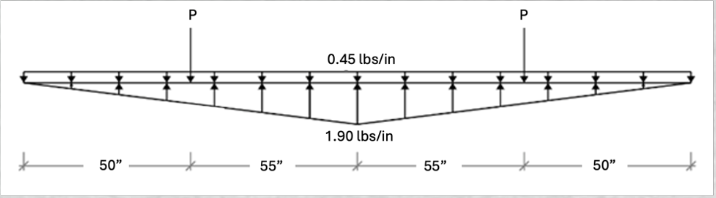

Figure 1: Free Body Diagram

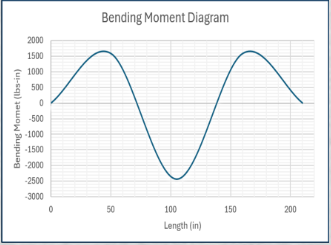

Figure 3: Bending Moment Diagram

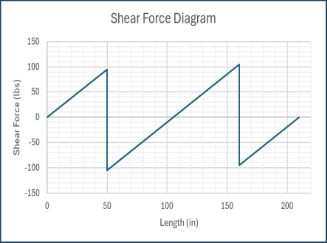

Figure 2: Shear Diagram

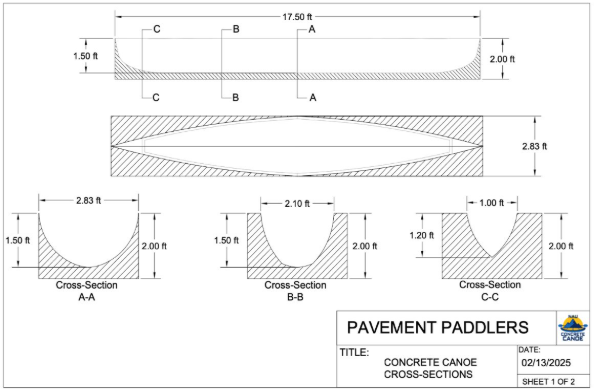

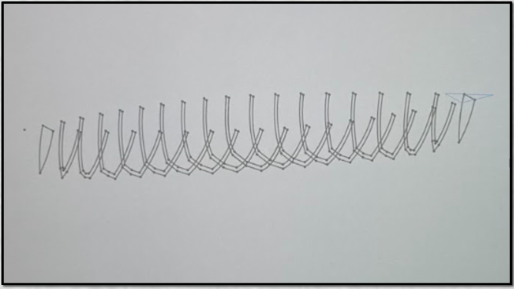

Figure 4: Model of the Canoe Cross-Sections
Back to TopREINFORCEMENT DESIGN
DESIGN ALTERNATIVES
Chicken Wire is affordable, flexible to work with, lightweight, and it has corrosion resistance.
Geogrid is cost effective, sustainable, and improves structural integrity.
Carbon Fiber Mesh is lightweight, has high strength, good toughness, it can be used in moisture surfaces, it's resistant to salt, acid, and alkali, and it can be used for flexural, shear, and confinement strengthening.
Fiberglass Mesh is resistant to harsh environments, it's capable of adhering to a putty or plaster surface, it increases the strength characteristics of surfaces,
Nitinol Memory Wire improves cracking resistance and could potentially self-heal concrete structures due to its shape memory and superelasticity.
Fiberglass Strands increase tensile strength and reduce cracking, as well as improve durability and resistance to freeze-thaw cycles.

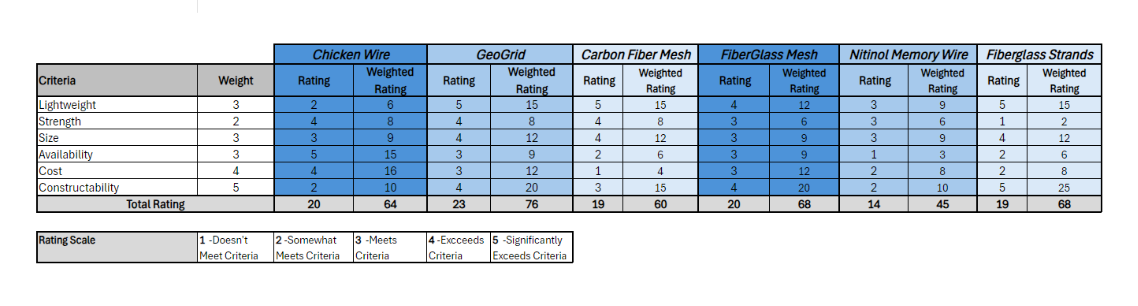

DECISION MATRIX
CHOSEN REINFORCEMENT: CARBON FIBER MESH

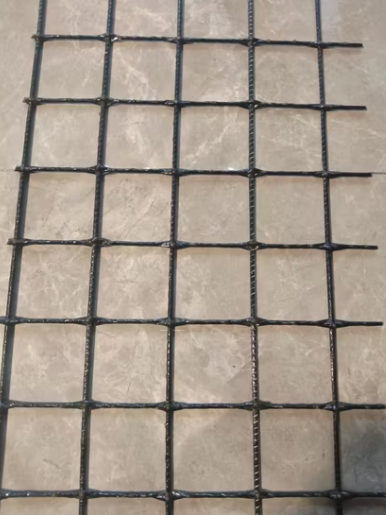

Figure 5: Carbon Fiber Mesh
